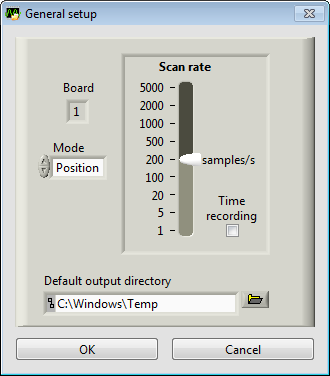

Click Setup menu and then General item. The following dialog window appears:
1.
Select acquisition mode :
- Position : axis position
- Velocity : axis velocity
2. Slide the cursor to select scan rate.
3. Check Time recording to output each acquired point time on data file (if needed).
4. Press Folder button to change default output directory.
5. Validate with Ok button, or press Cancel button.
Remarks
· The board number cannot be modified with the General Setup menu. If you have more than on IK220 board installed, you can select the used board with the key "Board" in section [General] of DataRecorder IK220.ini file.
·
Since positions are displayed in real time, the
maximum scan rate depends on the PC configuration.
If the scan rate is too high comparing to the PC performances, some data can be
wrong.
· To save the parameters values for next session, click Save Preferences item in Setup menu.
