This step configures and opens a reference for a Modbus RTU over TCP Communication.
To configure this step open the Edit Step window from Sequence editor.

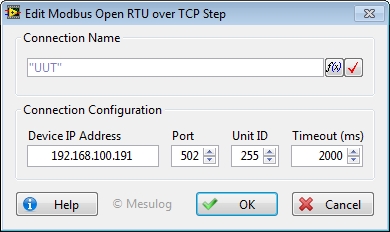

In the configuration dialog box, you can change the following settings:
· Connection Name: connection used to communicate with the device.
· Device IP Address: IP Address of the MODBUS Slave.
· Port: communication port used for the TCP/IP communication. Default value is 502 for MODBUS RTU over TCP.
· Unit ID: device targeted by all Modbus master read and write operations.
· Timeout: communication timeout in milliseconds for the specified connection.
|
|
Tip You can use “localhost” as IP address. |
|
|
Note Please read Execution Trace and Steps Variables chapter to learn more about accessing configuration of this step. |
