This function is used to read from 1 to 125 contiguous input registers in a remote device. You can specify the starting register address and the number of registers. The registers are addressed starting at zero. Therefore input registers numbered 1-16 are addressed as 0-15.
To configure this step open the Edit Step window from Sequence editor.

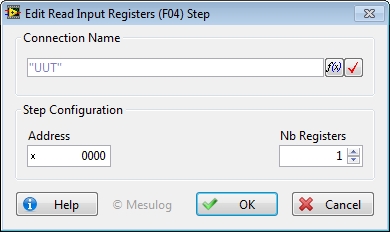

In the configuration dialog box, you can change the following settings:
· Connection Name: connection used to communicate with the device.
· Address: starting address of the input registers to read.
· Nb Registers: number of input registers to read (1 to 125 registers) from the starting address.
The value of the registers is stored in Step.Result.RegistersValue.
|
|
Note Please read Execution Trace and Steps Variables chapter to learn more about accessing configuration of this step and how to access data read. |
