This function is used to write a single output to either ON (true) or OFF (false) in a remote device.
You can specify the address of the coil to be forced and the true/false state of the coil. Coils are addressed starting at zero. Therefore coil numbered 1 is addressed as 0.

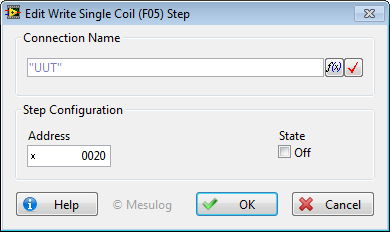

To configure this step open the Edit Step window from Sequence editor.
In the configuration dialog box, you can change the following settings:
· Connection Name: connection used to communicate with the device.
· Address: address of the coil to write.
· State: state to set for the specified coil.
|
|
Note Please read Execution Trace and Steps Variables chapter to learn more about accessing configuration of this step. |
