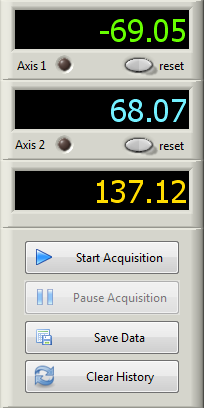

On main window's left side, the following panel appears:
1. Press Start Acquisition button to start acquisition. This button is grayed an disabled when the acquisition is running.
2. Press Pause Acquisition button to temporarily pause acquisition. This button is grayed an disabled when the acquisition is not running.
3. Press Save Data button to save acquired data to file.
4. Press Clear History button to reset display chart and clear history data.
Remarks
·
Reset control appears only for incremental
encoder.
To modify the encoder type, click Setup menu and then Axis item.
·
Reset action depends on incremental encoder
options :
- Manual : reset axis counter
- Ref : wait for reference mark
